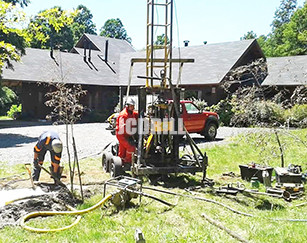

200m small size trailer mounted hydraulic water well drilling machine
| JXY200 Hydraulic drilling rig machine adopts the latest design with trailer mounted mobile base, mechanical transmission and hydraulic operation system. It is equipped with three-wing bit, alloy bit and diamond bit for different geological formations, such as soil, sand, gravel, granite, hard rock, etc.The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc. |  |
>> Characteristics
1. Exploration for foundation engineering;
2. Construction;
3. Water well or geotechnical survey drilling for caliber within diameter 600mm;
4. Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;
Power Supply
It can be driven by either electric motor or diesel engine.
Improved Structure
Gearbox, vertical shaft box, mud pump, diesel engine, etc, all integrated on one base.
Not only simplify the connection parts, guarantee the accuracy, reduce weight, save the lubricating oil, but also conducive to dustproof and lubrication, improve work efficiency and prolong the service life.
Tractor or Trailer Mounted Mobile Base
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.
Hydraulic drill tower, hydraulic legs
No need to erect drill tower manually, very convenient to use.
Three-wing Bit, Alloy Bit, Diamond Bit
Different bits to adapt to different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.
Direct Use
The complete set includes drilling rig, drilling tower, mud pump, etc. To ensure you can use directly after receiving our machine.
>> Specification
| 1.Overall parameters |
| Drilling depth | 200m |
| Maximum open hole caliber | 400mm |
| End hole caliber | 75mm |
| Diameter of drill rod | 50mm |
| Drilling angle | 90~75 |
| Weight(not include power) | 760kg |
| Dimension | 2750*950*1600mm |
| 2. Vertical shaft |
| Rotating speed | 71,142, ,310,,620r/min |
| Feeding stroke | 450mm |
| 3.Hoist |
| Maximum. single line hoisting capacity | 2400Kg |
| Diameter of wire rope | 13mm |
| Volume of winding drum | 35m |
| Hug floodgate caliber | 230mm |
| Hug floodgate belt width | 70mm |
| 4.Mud pump |
| Type | Horizontal single urn twin-action |
| Rate of flow | 180L/min |
| Maximum. pressure | 1.5MPa |
| Working pressure | 0.7MPa |
| Diameter of water inlet tube | 50mm |
| Diameter of water outlet tube | 45mm |
| 5.Power |
| Diesel engine | 22HP, 2200r/min |
| Electrical motor | 15KW, 1460r/min |
